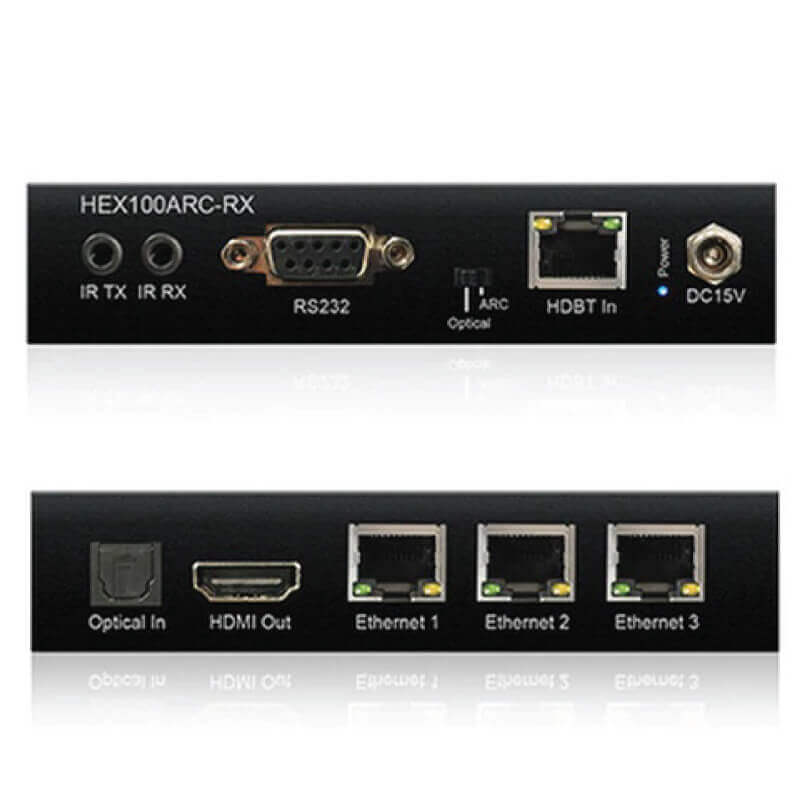

Blustream HEX100ARCKIT-V2 HDBaseT? Extender Set


Out of stock

HDBaseT? Extender Set – 100m (4K up to 70m), Bi-directional IR & RS-232, Bidirectional PoH (PoE), HDMI loop-out, Audio Breakout, ARC, 3x LAN switch, HDCP 2.2.
  • Bi-directional IR & RS-232 pass-through
  • Bi-directional PoH
  • HDCP 2.2 support

  • Our Platinum Range of HDBaseT? products offer the very best in performance and flexibility.
  • The HEX100ARC extender set is an industry-leading 4K HDBaseT? solution delivering HDMI with HDCP 2.2 support, Bi-directional IR, RS232, and PoH (PoE) up to lengths of 100m over a single CAT cable.
  • The HEX100ARC also provides enhanced features including an HDMI loop-out on the Transmitter, ARC via HDMI or Optical (S/PDIF), and an integrated 3-port Ethernet switch.
SKU: HEX100ARCKIT-V2 Category:

  • Advanced HDBaseT™ technology offering uncompressed video and audio with zero latency
  • Extends HDMI 1080P up to a distance of 100m over a single CAT cable
  • Supports 4K UHD video up to 70m (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)
  • Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
  • Features 1x HDMI loop-out for integrating local displays or cascading to multiple devices
  • Supports ARC (Audio Return Channel) from display via HDMI and Optical digital inputs
  • Supports audio return to HDMI, Optical digital and analog L/R audio outputs (DAC PCM only)
  • Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus, and DTS-HD Master Audio transmission
  • Integrated 3-port Ethernet switch (LAN Serving)
  • Bi-directional IR & RS-232 pass-through
  • Supplied with Blustream IR receiver and emitter
