Blustream HEX100ARC-RX HDBaseT? Receiver


Out of stock

HDBaseT? Receiver – 100m (4K up to 70m), Bi-directional IR & RS-232, Bi-directional PoH (PoE), ARC, 3x LAN switch, Compatible with PLA66ARC / V2 & PLA88ARC / V2.
  • Supports bi-directional PoH
  • HDCP compliant
  • Supports 4K UHD video

  • Our Platinum Range of HDBaseT? products offer the very best in performance and flexibility.
  • The HEX100ARC-RX is an industry-leading 4K HDBaseT? receiver delivering HDMI, Bi-directional IR, and PoH (PoE) up to lengths of 100m over a single CAT cable.

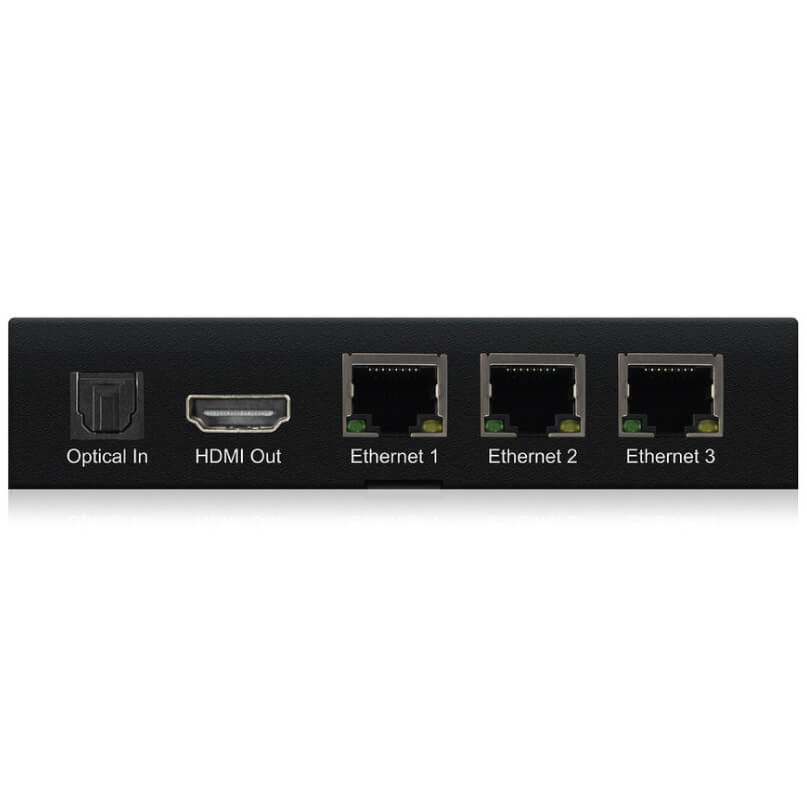

  • The HEX100ARC-RX also provides enhanced features including ARC, RS-232 pass through and an integrated?3-way Ethernet switch
SKU: HEX100ARC-RX Category:

  • Advanced HDBaseT™ technology offering uncompressed video and audio with zero latency
  • Extends HDMI 1080P up to a distance of 100m over a single CAT cable
  • Supports 4K UHD video up to 70m (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)
  • Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
  • Supports ARC from connected display via HDMI or Optical digital inputs (when used with compatible Blustream Transmitter/Matrix)
  • Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus, and DTS-HD Master Audio transmission
  • Integrated 3-port Ethernet switch (LAN Serving) when used with Blustream HEX100ARC-TX transmitter or Platinum matrix solution.

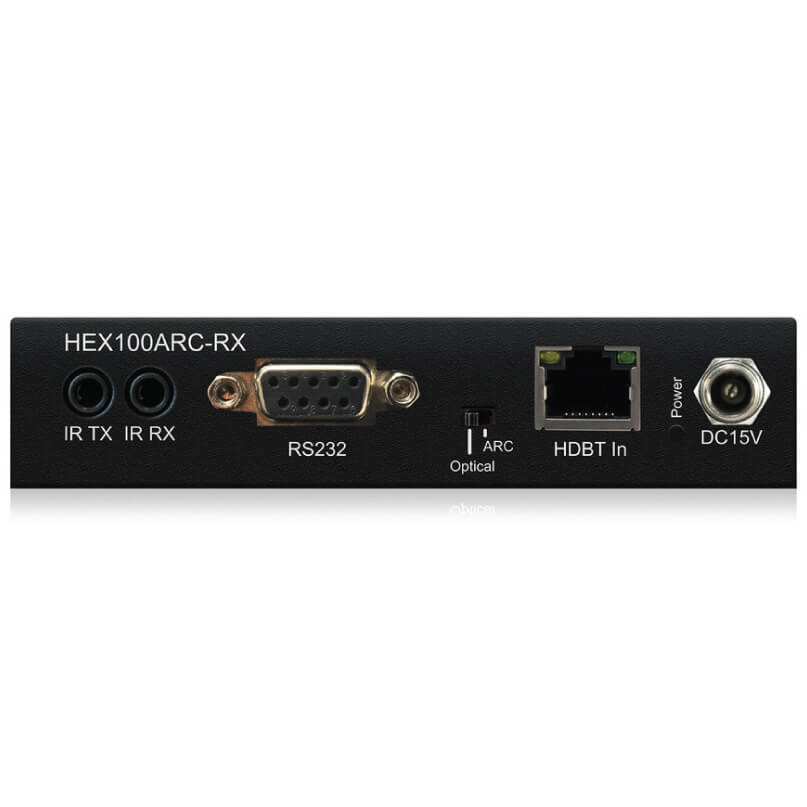

  • Bi-directional RS-232 pass through
  • Bi-directional IR from all input and output locations
  • Supports bi-directional PoH (Power over HDBaseT™) to power extender from either Matrix, transmitter, or receiver end
  • HDCP compliant
