Blustream HD12DB Down-Mixing DAC 2-Way HDMI Split


  • Features an in-built DAC (Digital to Analogue audio Converter) that converts 5.1ch Dolby Audio or DTS Audio to a stereo 2ch signal available on HDMI, optical and analog audio outputs concurrently
  • Supports the following audio input formats: Dolby 5.1, DTS-ES 6.1, DD+5.1, DD+2.0, PCM 5.1, PCM 2.0 *
  • Features 1 x HDMI input supporting 4K UHD video (4K 60Hz 4:4:4) that is replicated to 2x HDMI outputs
  • HDMI loop out will replicate the HDMI input signal up to 4K 60Hz 4:4:4 and 5.1ch Dolby Audio & DTS Audio
  • HDMI audio breakout to downmixed analog L/R audio and downmixed optical digital outputs concurrently
  • HDCP 2.2 compliant with advanced EDID management


The Blustream HD12DB has been designed to convert and downmix embedded 5.1ch Dolby Audio or DTS Audio within an HDMI signal into a stereo 2ch signal available on HDMI, optical and analog audio outputs.

The HD12DB features an HDMI loop out to pass the original video and multi-channel embedded audio signal to compatible equipment, with a second HDMI output featuring video scaling of resolutions up to 4K 60Hz 4:4:4 video to various lower video formats. This provides the perfect cost-effective solution for ensuring that 4K UHD video and multi-channel audio can be distributed around a multi-room system where there are a mixture of 2ch and 5.1ch zones with multiple output resolution requirements.

SKU: HD12DB Category:

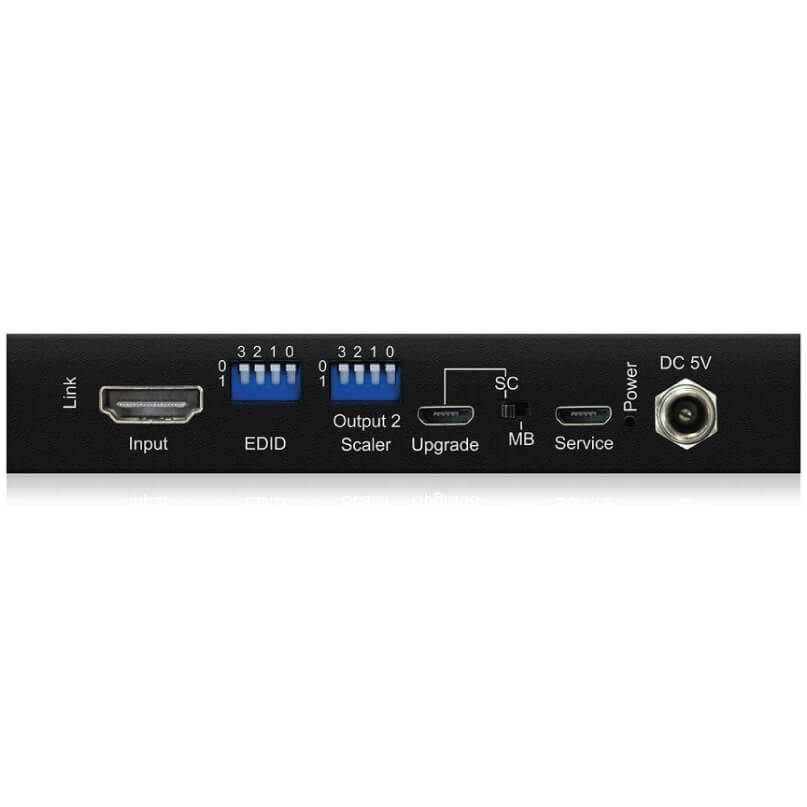

Video-Input Connectors: 1 x HDMI Type A, 19-pin, female

Video Output Connectors: 2 x HDMI Type A, 19-pin, female

Audio Output Connectors: 1 x Optical (Toslink), 2x RCA analogue left / right

EDID: 4-PIN DIP switch

Resolution: 4-PIN DIP switch

Product upgrade: 2 x Micro USB female

Dimensions (W x H x D): 127mm x 23mm x 104mm, without feet

Shipping Weight: 1.0kg

Operating Temperature: 0°C to 40°C

Storage Temperature: -20°C to 60°C

Power Supply: 5V/3A DC
