Blustream CMX88AB Contractor 8×8 HDMI 2.0 4K HDCP 2.2 Matrix with Audio Breakout


  • Features 8 x HDMI inputs which can be independently routed to 8 x HDMI outputs
  • Supports HDMI 2.0 18Gbps specification including HDR
  • Supports up to 4K UHD 60Hz 4:4:4
  • Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
  • Supports all known digital HDMI audio formats including Dolby TrueHD, Atmos; DTS-HD Master Audio, and DTS:X transmissions
  • HDMI audio breakout to associated output analog L/R audio and coaxial digital outputs concurrently
  • Web interface module for control and configuration of Matrix

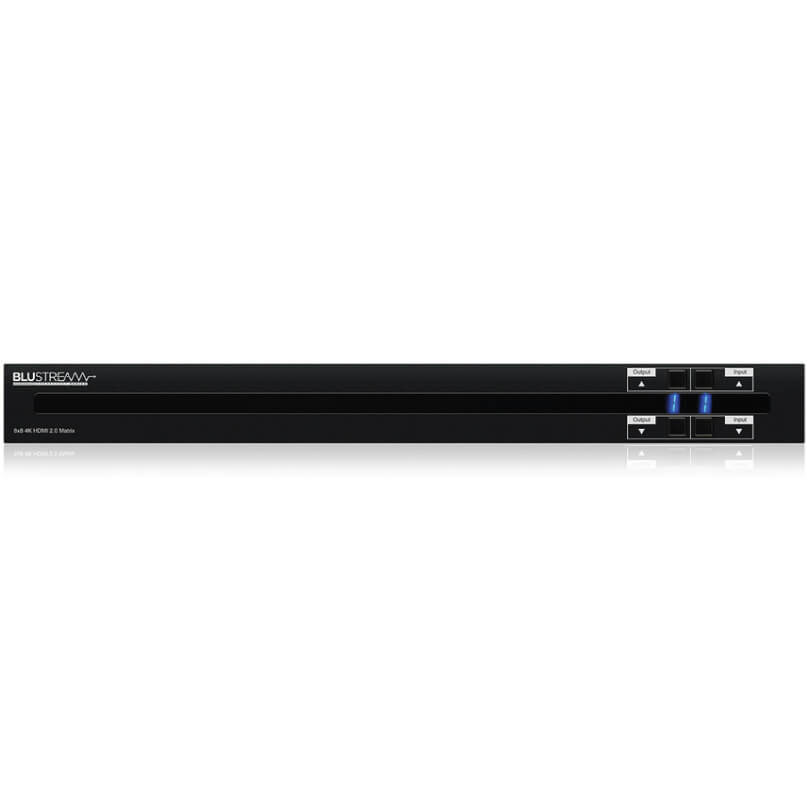

  • Control via front panel, IR, RS-232, and TCP/IP
  • 3rd Party drivers available for all major home control brands
  • Advanced EDID management
  • HDCP 2.2 compliant


Our Contractor CMX88AB 4K HDMI Matrix offers unprecedented performance and value for the custom installation market. The CMX88AB supports HDMI2.0 with HDCP2.2, allowing the distribution of eight HDMI sources to eight displays. This enables all sources to be viewed as required within a matrix configuration. The unit transmits all HDMI resolutions up to and including 4K 60Hz 4:4:4. The 8-Way matrix also includes audio breakout, EDID management, and a web browser interface module for the control and configuration of the matrix.

SKU: CMX88AB Category:

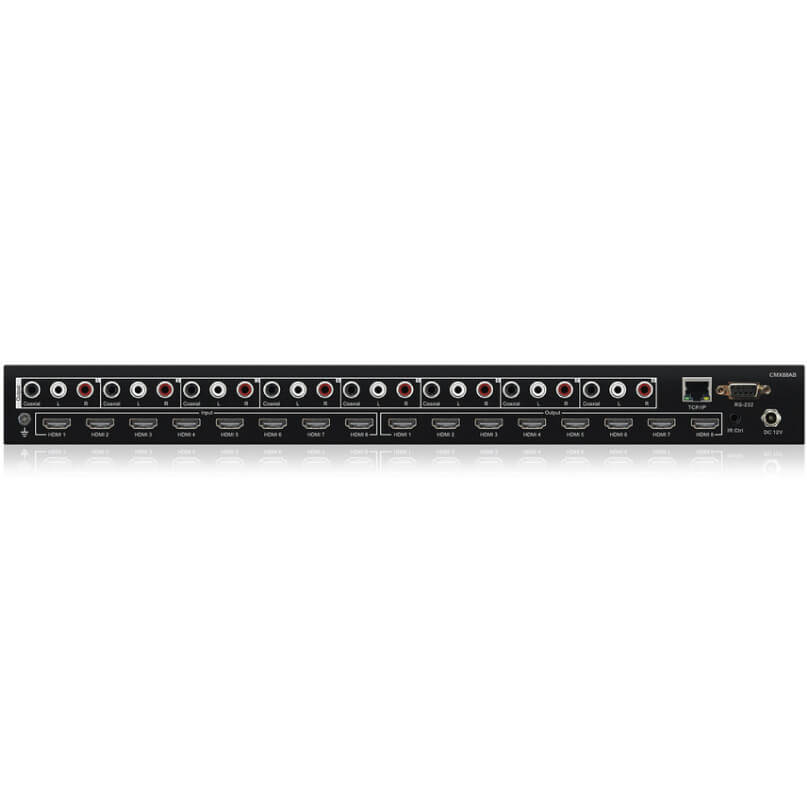

Video-Input Connectors: 8 x HDMI Type A, 19-pin, female, locking

Video Output Connectors: 8 x HDMI Type A, 19-pin, female, locking

Audio Output Connectors: 8 x RCA (SPDIF), 8x Analogue RCA (Left/Right)

TCP/IP Control: 1 x RJ45, female

RS-232 serial port: DB-9, female

IR Input ports: 1 x 3.5mm stereo jack

Mounting kit included

Casing Dimensions (W x D x H): 441mm x 226mm x 45mm

Dimensions Including Connections (W x H x D): 441mm x 234 mm x 50 mm

Shipping Weight: 3.5kg

Operating Temperature: 32°F to 104°F (0°C to 40°C)

Storage Temperature: -4°F to 140°F (-20°C to 60°C)

Power Supply: 12V/3A DC
