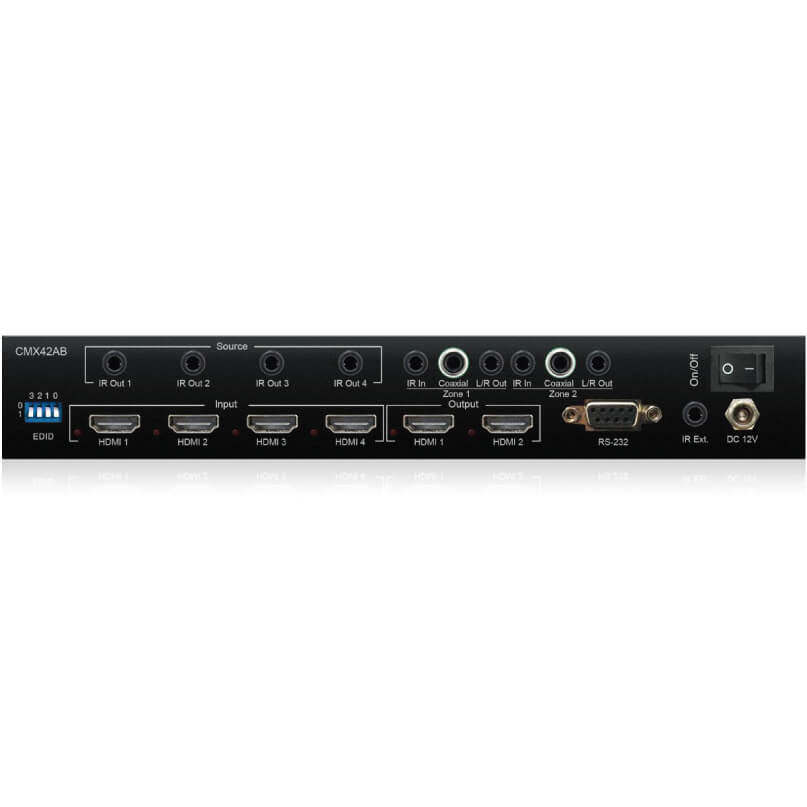

Cmx42ab hdmi matrix switcher with four hdmi inputs, multiple ir outputs, rs-232, two ir zones, and dc 12v power.

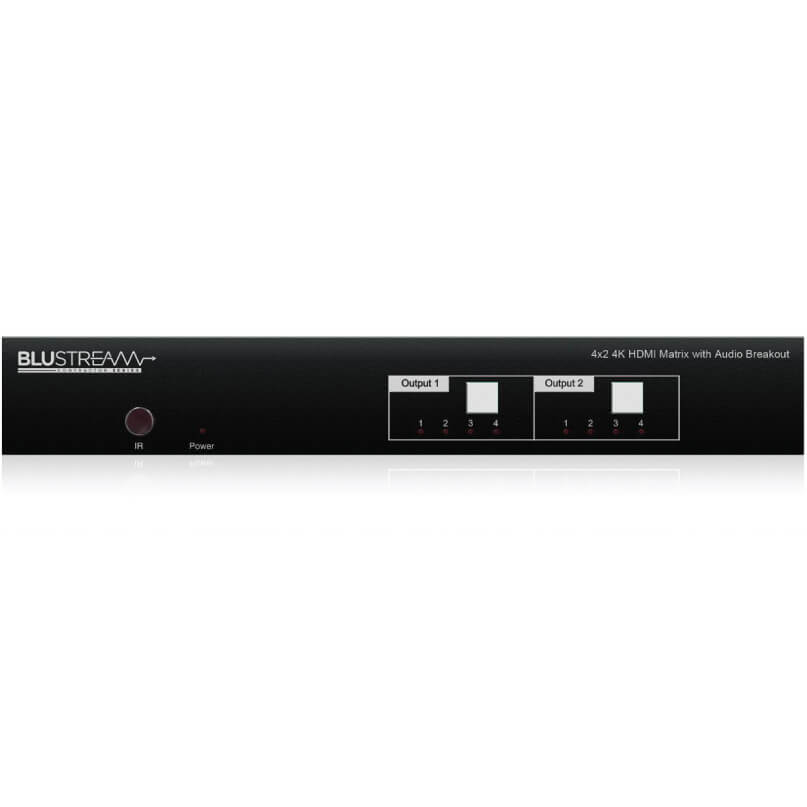

Blustream 4x2 4k hdmi matrix with audio breakout front panel showing two outputs and four input ports.
Sales Specialist
Need help? Contact our sales specialist
(02) 9600 6655 | Email us

Blustream CMX42AB 4×2 HDMI2.0 4K HDCP2.2 Matrix

Blustream
Our Contractor CMX42AB 4K HDMI Matrix offers unprecedented performance and value for the custom installation market.
  • Power Supply: 12V/2A DC
  • Shipping Weight: 1.6kg
  • IR Input ports: 3x 3.5mm stereo jack

$649

  • The CMX42AB supports HDMI2.0 and HDCP2.2, allowing the distribution of four HDMI sources to two displays.
  • This enables all sources to be viewed as required within a matrix configuration.
  • The unit transmits all HDMI resolutions up to and including 4K 60Hz 4:4:4.
  • The 4-Way matrix also includes audio breakout and EDID management.

Feature

  • Features 4x HDMI inputs which can be independently routed to 2x HDMI outputs
  • Supports HDMI2.0 18Gbps specification including HDR
  • Supports up to 4K UHD 60Hz 4:4:4
  • Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
  • Supports all known digital HDMI audio formats including Dolby TrueHD, Atmos; DTS-HD Master Audio, and DTS:X transmissions
  • HDMI audio breakout to associated output analog L/R audio and coaxial digital outputs concurrently
  • Control via front panel, IR, and RS-232
  • IR routing
  • Supplied with Blustream 5V IR receivers and emitters
  • 3rd Party drivers available for all major home control brands
  • Advanced EDID management
  • HDCP2.2 compliant
SKU: CMX42AB Category:
Brands

  • Video-Input Connectors: 4x HDMI Type A, 19-pin, female, locking
  • Video Output Connectors: 2x HDMI Type A, 19-pin, female, locking
  • Audio Output Connectors: 2x RCA (S/PDIF), 2x Analogue audio L/R (3.5mm stereo jack)
  • RS-232 serial port: DB-9, female
  • IR Input ports: 3x 3.5mm stereo jack
  • IR Output ports: 4x 3.5mm mono jack
  • Mounting kit included
  • Unit Dimensions (WxDxH):  255mm x 104mm x 40mm (without feet or connections)
  • Unit Dimensions (WxDxH):  255mm x 115mm x 47mm (with feet and connections)
  • Shipping Weight: 1.6kg
  • Operating Temperature: 32°F to 104°F (0°C to 40°C)
  • Storage Temperature: -4°F to 140°F (-20°C to 60°C)
  • Power Supply: 12V/2A DC
