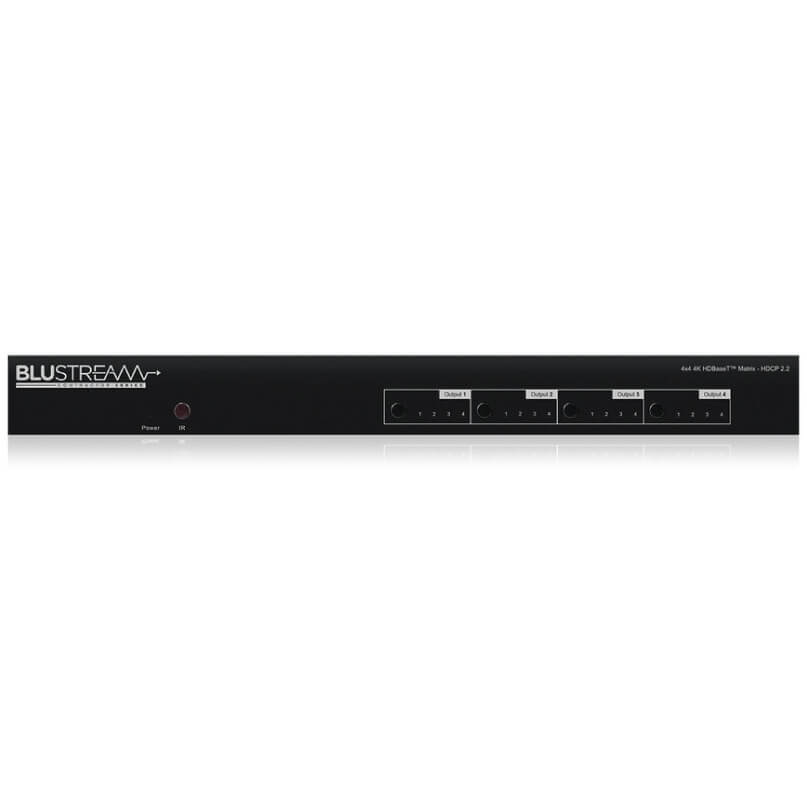

Blustream C44-KIT Contractor 4×4 HDBaseT Matrix Kit

Blustream

Contractor 4×4 HDBaseT? Matrix Kit – 70m (4K up to 40m), Bi-directional IR, PoH (PoE),Simultaneous HDMI / HDBaseT? on output 1, RS-232 & TCP / IP Control, HDCP 2.2 compliant, WEB GUI, Includes 4x HEX70B-RX HDBaseT? Receivers.
  • Supports 3D signal display
  • Advanced EDID management
  • Supports 4K UHD video

$3,399

Our Contractor 4×4 HDBaseT? Matrix offers unprecedented performance and value for the custom installation market. The C44-KIT is a 4K HDCP 2.2 Matrix package, delivering HDMI, Bi-directional IR, and PoC up to lengths of 70m over a single CAT cable.

The Matrix also provides advanced features including simultaneous HDBaseT? / HDMI on output 1 and a web browser interface module for control and configuration of the matrix. The C44-KIT is supplied with 4 x HEX70B Receivers.

Box Content

1 x C44
4 x HEX70B-RX
1 x Rack Mounting Kit
4 x Mounting Kit for HEX70B-RX
1 x 24V/3.5A Power Supply
1 x IR Remote Control
4 x IR Emitters
5 x IR Receivers
1 x Quick Reference Guide

Key Features

  • Advanced HDBaseT? technology offering uncompressed video and audio with zero latency

  • Features 4 x HDMI inputs which can be independently routed to 4 x HDBaseT? outputs

  • Output 1 features simultaneous HDMI and HDBaseT? output

  • Extends HDMI up to a distance of 70m over a single CAT cable

  • Supports 4K UHD video up to 40m (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)

  • Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K

  • Supports 3D signal display

  • Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus, and DTS-HD Master Audio transmission

  • Web interface module for control and configuration of Matrix

  • Supports bi-directional IR on all HDBaseT? outputs

  • Supplied with Blustream IR Receivers and Emitters

  • Control via front panel, IR, RS-232, and TCP/IP

  • Supports PoC (Power over Cable) to supplied HDBaseT? Receivers

  • 3rd Party drivers available for all major home control brands

  • 1U Design for 19″ rack mount integration – mounting kit included

  • Advanced EDID management

  • HDCP 2.2 Compliant

  • Supplied with 4 x HEX70B-RX Receivers

SKU: C44-KIT Category:
Weight 2700 g
Dimensions 202 × 440 × 52 mm
Brand

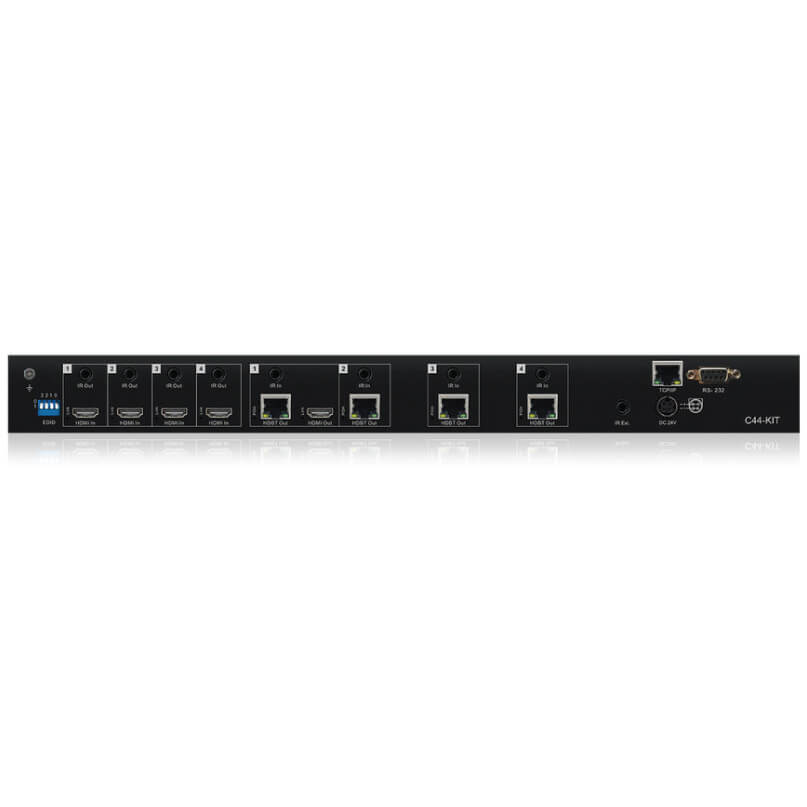

  • Video Input Connectors: 4 x HDMI Type A, 19-pin, female

  • Video Output Connectors: 1 x HDMI Type A, 19-pin, female, 4 x HDBaseT™ RJ45 connector

  • RS-232 serial port: 1 x DB-9, female

  • TCP/IP Control: 1 x RJ45, female

  • IR Input ports: 5 x 3.5mm stereo jack

  • IR Output ports: 4 x 3.5mm mono jack

  • Rack-Mountable: 1U rack height, rack ears included

  • Case Dimensions (without feet) (W x D x H): 440mm x 202mm x 44mm

  • Dimensions (W x D x H): 440mm x 212mm x 52mm

  • Shipping Weight: 2.7kg

  • Operating Temperature: 32°F to 104°F (0°C to 40°C)

  • Storage Temperature : -4°F to 140°F (-20°C to 60°C)

  • Power Supply: 1 x 24V/3.5A DC
