BenQ AH500ST Golf Simulator Projector
Bring the golf course home with the BenQ AH500ST 4000-Lumen Full HD Short-Throw Laser DLP Golf Simulator Projector. Featuring a short 0.5:1 throw ratio, with easy installation options, and support for 16:9, 16:10, 4:3, and 1:1 screen ratios, the AH500ST is designed for golf simulation in small spaces.
KEY FEATURES
- Designed for Golf Simulation
- Brightness of 4000 ANSI Lumens
- Full HD (1920 x 1080) Native Resolution
- 0.5:1 Short-Throw Ratio
- Supports HDR10 & HLG Content
- 2 x HDMI 2.0a Inputs
- Screen Fill Feature
- V & H Keystone Adjustment
- IP5X Certified Dustproof
- 20,000 Hours of Estimated Laser Life
$2,999
BenQ AH500ST 4000-Lumen Full HD Short-Throw Laser DLP Golf Simulator Projector
The short-throw lens can fill a 200″, 16:9 aspect screen from just 7.4′ away. Connect sources via HDMI 2.0a with support for HDR10 and HLG content. BenQ’s exclusive Golf Mode is tailored for different golf course environments with authentic colors to deliver an immersive experience from the most famous courses in the world.
Easy Installation for Beginners
To solve complex screen ratio, alignment, and focus issues, the BenQ AH500ST integrates commonly used installation functions into a dedicated remote control hotkey, eliminating the need for repetitive adjustments.
Screen Fill
BenQ’s exclusive Screen Fill feature automatically switches to 1:1, 4:3, 16:9, or 16:10 native resolutions, ensuring the image fully fills the screen without distortion.
Additional Features
- Wi-Fi capability with optional dongle (sold separately)

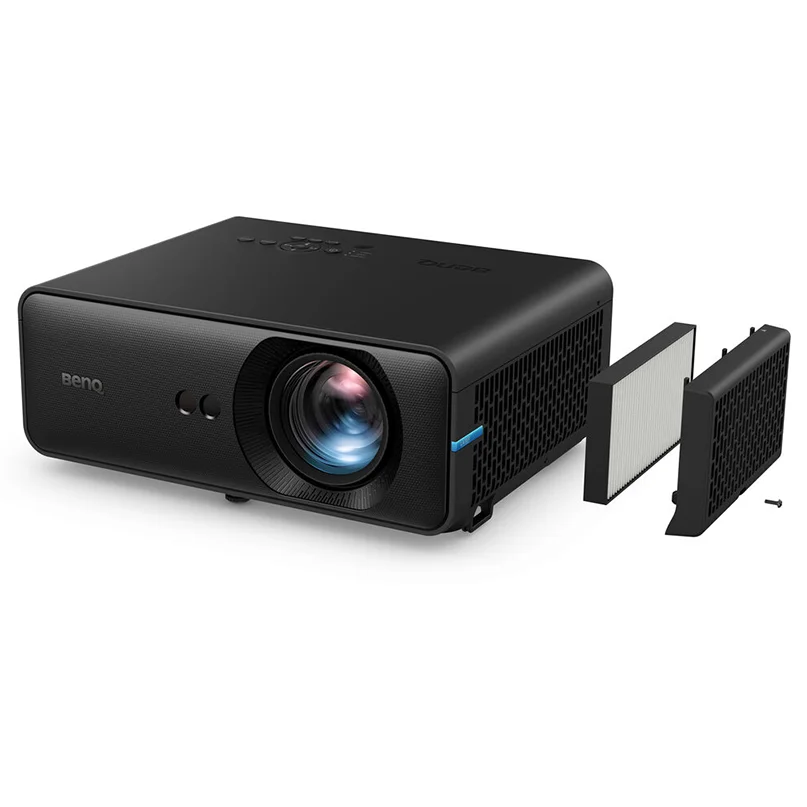

- IP5X dustproof sealed optical engine
- 20,000 hours of estimated laser life
- No need for lamp or filter replacements
| Weight | 5100 g |
|---|---|
| Dimensions | 255 × 320.0 × 130.6 mm |
| Brands |
Image Display
| Display System | 1-Chip DMD DLP |
| Native Resolution | 1920 x 1080 |
| Supported Resolutions | Maximum: 3840 x 2160 @ 60 Hz |
| Maximum Brightness | 4000 Lumens (ANSI) |
| Offset | 112% vertical |
| Aspect Ratio | Native: 16:9 Supported: 16:10 Supported: 4:3 Supported: 1:1 |
| DLP Link 3D | Yes |
| Supported 3D Formats | Frame Sequential Frame Packing Side by Side Top Bottom |
| Scan | Horizontal: 15 to 102kHz Vertical: 23 to 120Hz |
| Latency | 16.7 ms |
Lens
| Includes Lens | Yes |
| Focus | Auto |
| Aperture | f/2.8 |
| Focal Length | 7.46mm |
| Optical Zoom | Powered: |
| Throw Distance | 1.16 to 8.9′ / 0.35 to 2.7 m |
| Throw Ratio | 0.499:1 (150″ Screen Size @ 6.6′ / 2 m) |
| Projection Size | 32 to 200″ / .8 to 5.1 m |
Features
| Keystone Correction | Auto / Manual to Vertical: ± 30° Auto / Manual to Horizontal: ± 30° |
| HDR Support | Yes: HDR10/Hybrid Log Gamma |
| Multi-Input Support (PIP/PBP) | No |

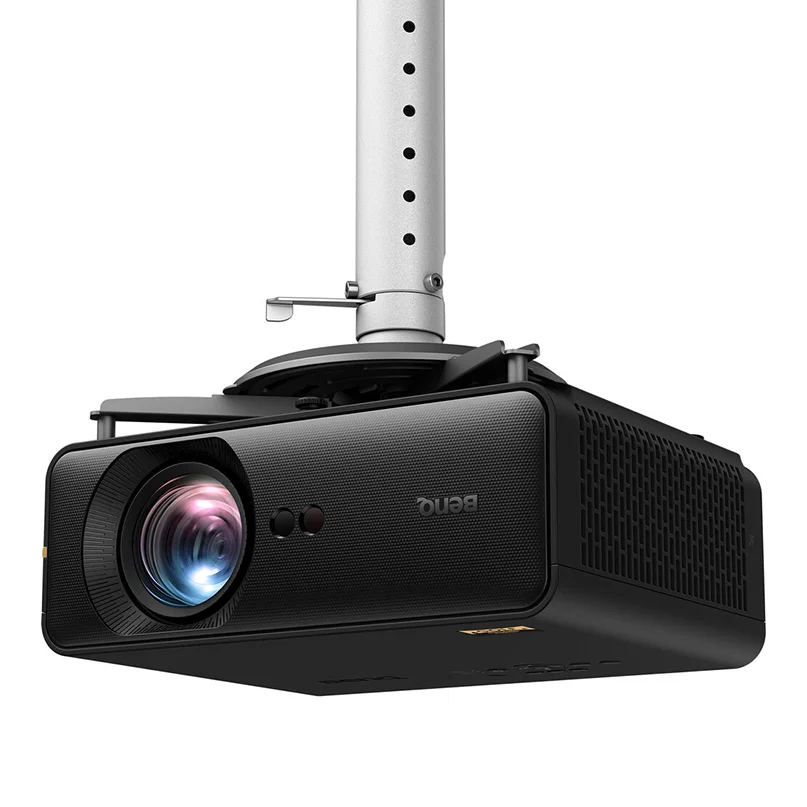

| Ceiling Mountable | Yes |
| Rear Screen Projection | Yes |
| Built-In Speaker | Yes (Mono) |
| Speaker Power | 10 W |
| Projection Tilt Option | Yes |
Input/Output Connectors

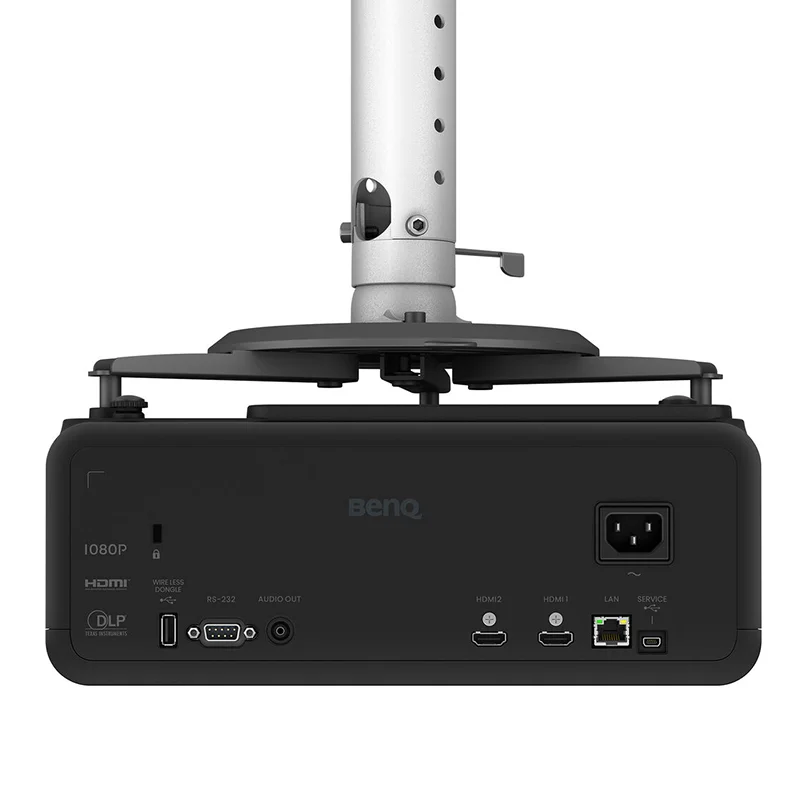

| Inputs/Outputs | 2x HDMI 2.0a Audio, Video Input 1x USB-A LAN, Power Input/Output 1x 1/8″ / 3.5 mm Mini Audio Output 1x RJ45 (Ethernet) LAN Input 1x DE-9/DB-9 (RS-232) Control Input 1x Mini-USB Service Input |
| HDCP Support | Yes: Version 2.2 |
| Media/Memory Card Slot | No |
Hardware
| Mobile App Compatible | No |
| Wireless LAN / Wi-Fi | No, Optional Adapter Available |
| Bluetooth | No |
General
| Light Source | Laser Phosphor |
| Expected Lamp Life | Full Brightness: 20,000 Hours |
| Fan Noise | Medium Brightness: 35 dB Low Brightness: 32 dB |
| Security | Cable Lock Slot Security Bar |
| Supported Languages | Croatian Czech Danish Dutch English Finnish French German Italian Japanese Korean Malaysian Norwegian Polish Portuguese Romanian Russian Simplified Chinese Spanish Swedish Thai Traditional Chinese Turkish Vietnamese |
| Input Power | 100 to 240 VAC, 50 / 60 Hz |
| Power Consumption | Medium Brightness: 250 W Standby Mode (Lamp Off): < 2 W |
| Operating Conditions | 32 to 104°F / 0 to 40°C |
