- The unit has a single Cat5 input for receiving the signal and outputs HDMI, Infra Red, and RS232.
- The Infra Red and?RS232?are Bidirectional.
Need help? Contact our sales specialist
Uncategorized

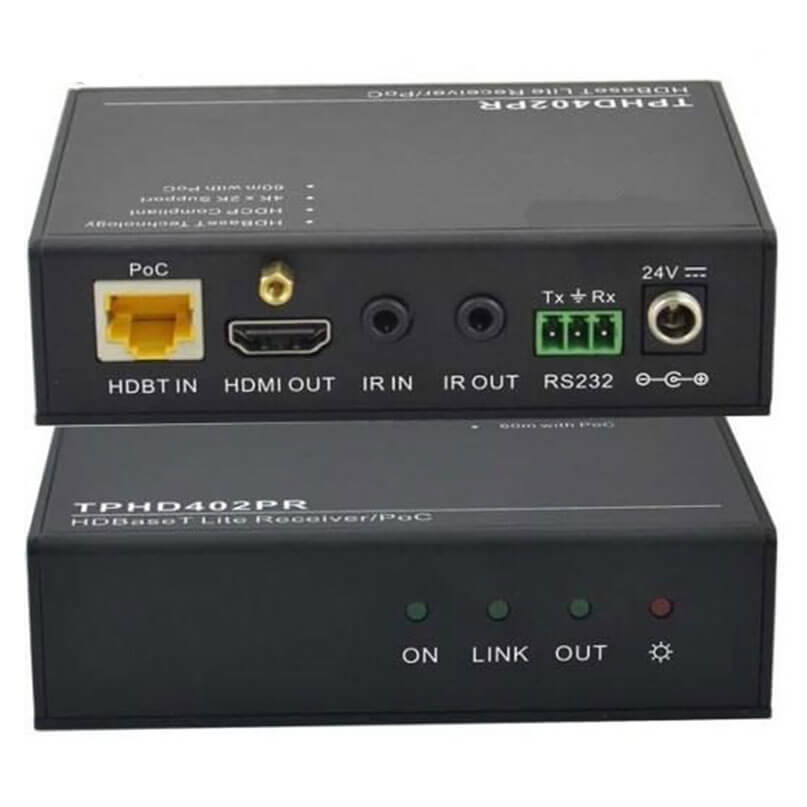

Avgear HD402R Amplifier HDBaseT Receiver
Availability:
Out of stock
Receiver for AVGear 121 Series Scalers, MMX Series Matrix Switches
- Series Scalers
- Matrix Switches
- HDMI
$280
Out of stock
| Weight | 650 g |
|---|---|
| Dimensions | 100 × 244 × 25.5 mm |
| Brands |
| Video Input | |
| Input | (4) HDMI |
| Input Connector | (4) female type A HDMI |
| HDMI Version | 1.4 |
| HDCP Version | 2.2 |
| Video Output | |
| Output | (4) HDMI |
| Output Connector | (4) female type A HDMI |
| HDMI Version | 1.4 |
| HDCP Version | 1.4 |
| General | |
| Maximum Video Resolution | 4K@60Hz 4:2:0 |
| Maximum Bandwidth | 10.2 Gbps |
| Control Options | Front Panel, IR Remote, RS232 |
| Input Power | 12V DC 2A |
| AC Adapter Input Power | 100 ~ 240 V AC, 50/60 Hz |
| Maximum Power Consumption | 10 watts |
| Operation Temperature | 0 ~ +40℃ |
| Storage Temperature | -10 ~ +55℃ |
| Relative Humidity | 10% ~ 90% |
| Dimension (W*H*D) | 244mm x 25.5mm x 100mm;
269mm x 25.5mm x 100mm (with Mounting Ears) |
| Net Weight | 650g |
