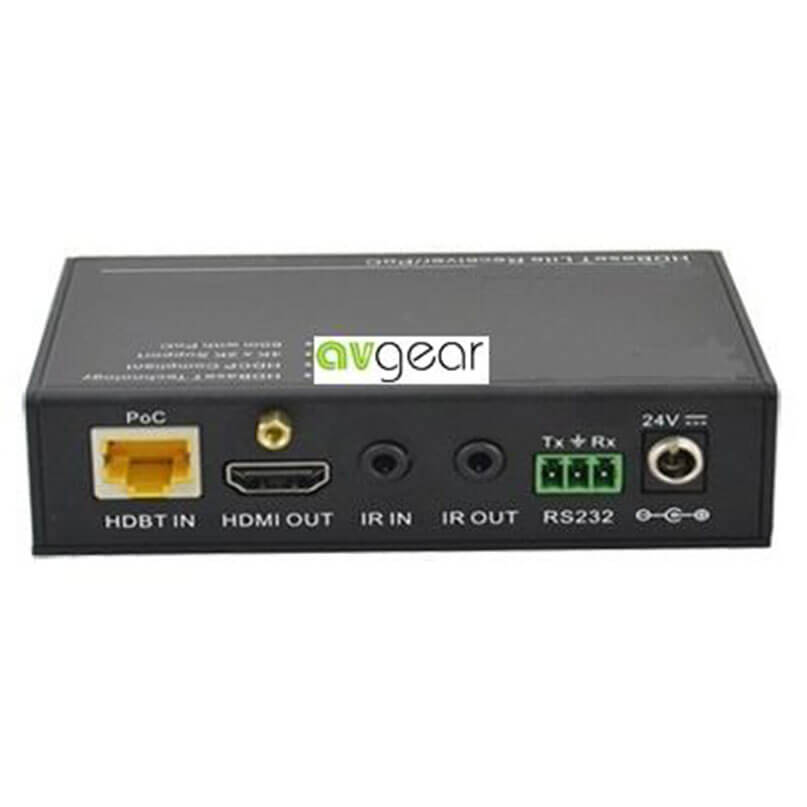

Avgear HD300PR IR Hdbaset Receiver Kit Amplifier


Kit Includes – 1 x AVG-HD300PR 1 x SM850R 1 x RE1
  • HD300PR
  • M850R
  • RE1



The AVG-K12 is designed to be used in education and commercial environments. The Kit consists of a Scaler Wall Plate HDBaseT Transmitter, an HDBaseT Receiver and a Control Panel.

The Transmitter has a HDMI and a VGA input, which support HDCP1.4 and can be switched easily. ?It can transmit HDMI signals to the Receiver via CAT5e/CAT6a cable up to a maximum distance of 30m at 1920?1080@60HZ.

SKU: HD300PR IR Kit Category:
Weight 650 g
Dimensions 100 × 244 × 25.5 mm

Video Input
Input (4) HDMI
Input Connector (4) female type A HDMI
HDMI Version 1.4
HDCP Version 2.2
Video Output
Output (4) HDMI
Output Connector (4) female type A HDMI
HDMI Version 1.4
HDCP Version 1.4
Maximum Video Resolution 4K@60Hz 4:2:0
Maximum Bandwidth 10.2 Gbps
Control Options Front Panel, IR Remote, RS232
Input Power 12V DC 2A
AC Adapter Input Power 100 ~ 240 V AC, 50/60 Hz
Maximum Power Consumption 10 watts
Operation Temperature 0 ~ +40℃
Storage Temperature -10 ~ +55℃
Relative Humidity 10% ~ 90%
Dimension (W*H*D) 244mm x 25.5mm x 100mm;

269mm x 25.5mm x 100mm (with Mounting Ears)

Net Weight 650g
