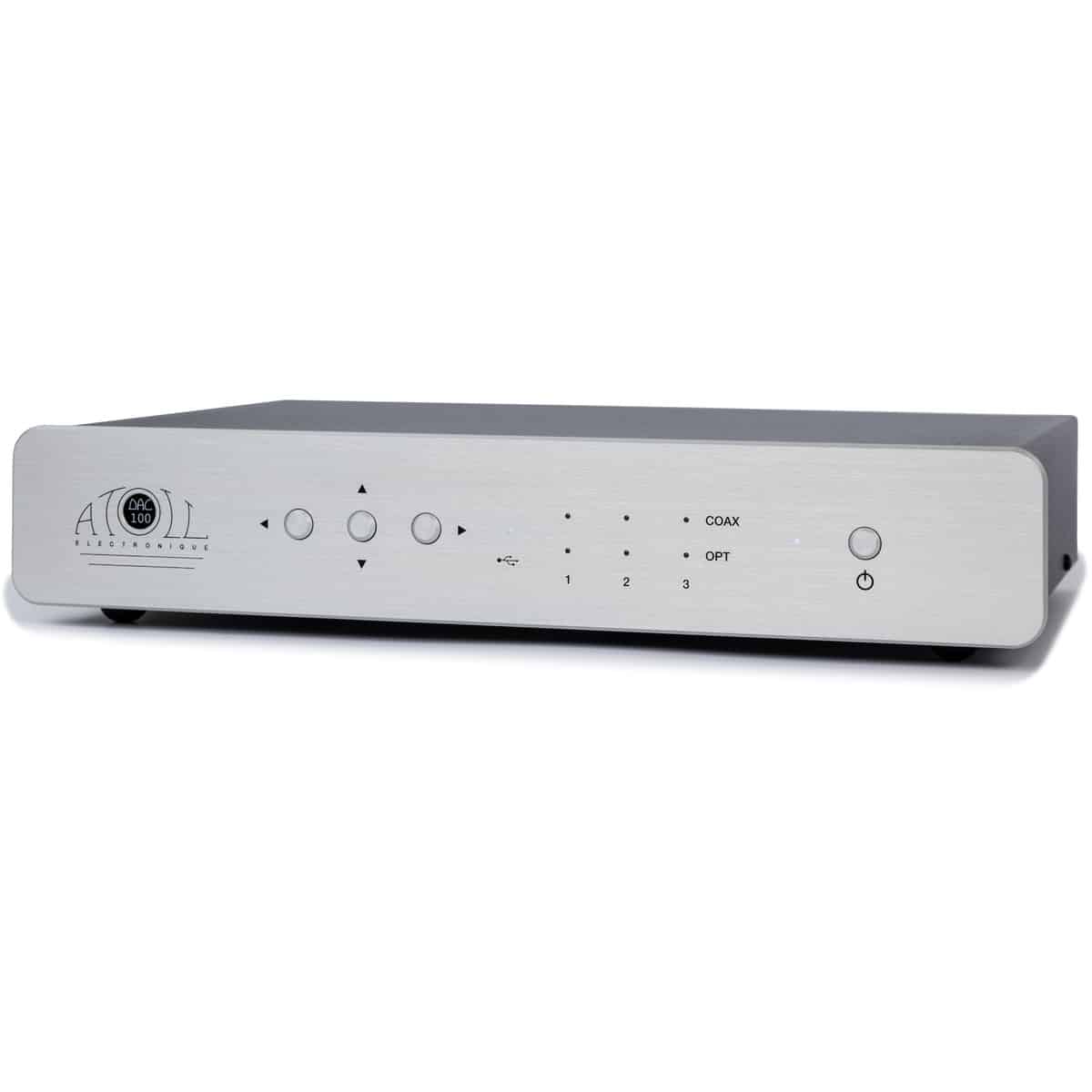

ATOLL ELECTRONIQUE DAC100 SIGNATURE
ATOLL ELECTRONIQUE DAC100 SIGNATURE
The ATOLL ELECTRONIQUE DAC100 SIGNATURE converter has been implemented to offer you the best of your favourite music. Many believe that the secret to a good converter lies in choosing a “high-end” converter chip. If this is important, we know that the essence of the musicality also resides in the line signal processing stages, the power supplies (transformers, filtering, regulation), the digital signal processing before conversion, the quality of the key components: clocks, transistors, capacitors, etc…
$1,299.95
ATOLL ELECTRONIQUE DAC100 SIGNATURE
The ATOLL ELECTRONIQUE DAC100 SIGNATURE converter has been implemented to offer you the best of your favourite music. Many believe that the secret to a good converter lies in choosing a “high-end” converter chip. If this is important, we know that the essence of the musicality also resides in the line signal processing stages, the power supplies (transformers, filtering, regulation), the digital signal processing before conversion, the quality of the key components: clocks, transistors, capacitors, etc…
Features
- The USB (B type) input allows the conversion of files to 24 bit/192 kHz and DSD64 & DSD128
- Improvement of audio stages with MKP capacitors
- 2 independent transformers (including a reserved to audio analog)
- 7 regulated supplies
- D/A converter: BURR BROWN PCM1796
- Output stages with discrete components without feedback
- MKP condensators for audio links
- Accepted format for the USB input: 24bits (32kHz, 44,1kHz, 48kHz & 96kHz, 192kHz, DSD64 & DSD128)
- Accepted format for optical and coaxial inputs: 16‐24bit (44,1kHz, 48kHz, 96kHz and 192kHz)
- The DAC100 Signature can be used with the remote ATOLL (optional) for:
- Inputs selection
- The attenuation of the output level

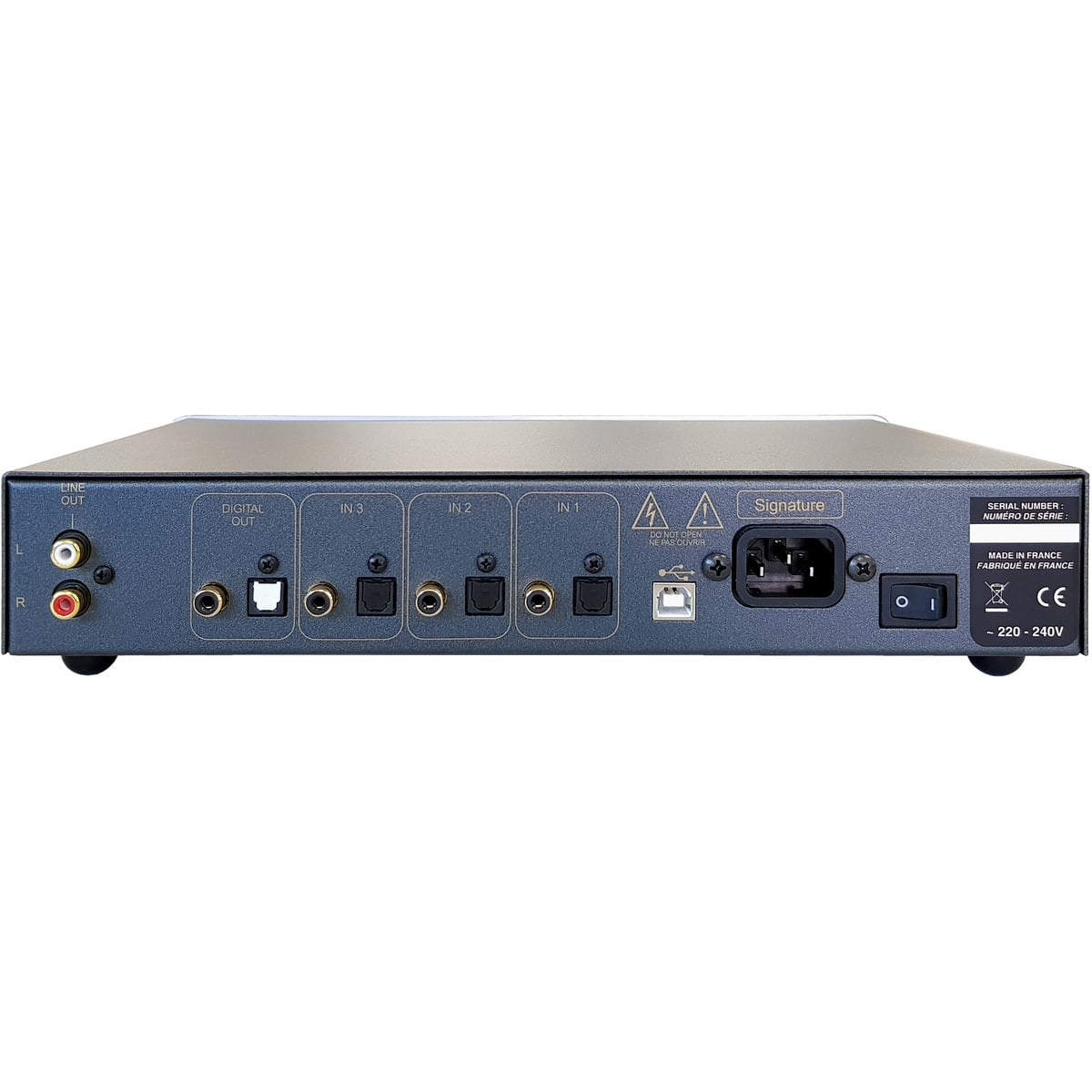

Connections
- 3 Optical Inputs
- 3 coaxial Inputs
- 1 USB Input (B type)
- 1 RCA stereo Output
- 2 digital Outputs (Optical & coaxial)
| Weight | 3000 g |
|---|---|
| Dimensions | 320 × 210 × 60 mm |
| Brands | |
| Color | Black, Silver |
Specifications
- Dimensions: 320*210*60 mm
- Weight: 2 Kg
- Black or silver finish available
- Frequency Response 20 Hz – 20 kHz (± 0,1 dB)
- THD at 1 Khz (0 dBF) <0,001% 24 bits
- Signal/Noise ratio 123dB
- Dynamic 123dB
- Output level 2.5 Vrms
