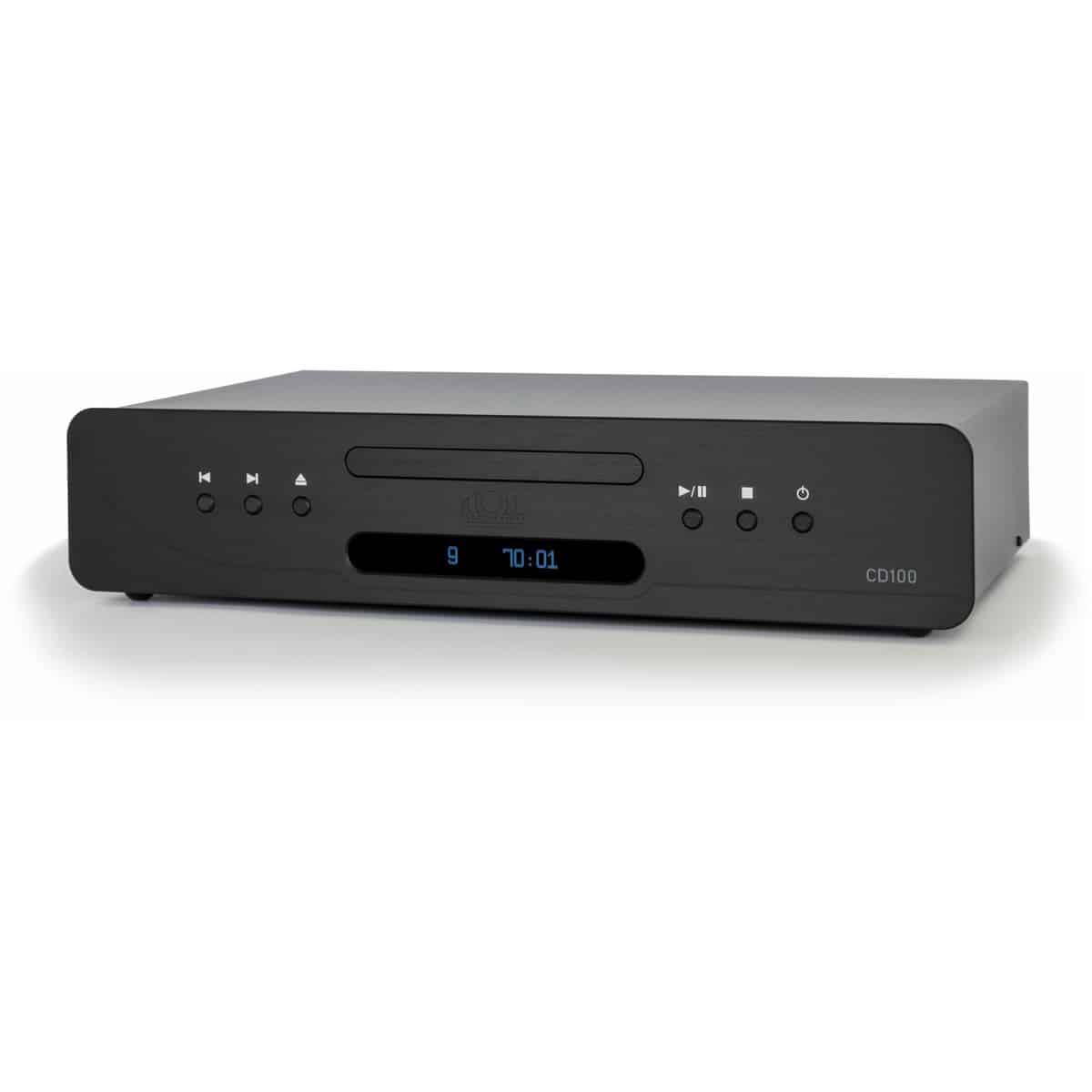

ATOLL ELECTRONIQUE CD100 SIGNATURE

ATOLL

ATOLL ELECTRONIQUE CD100 SIGNATURE

The Signature Series CD players have benefited from many innovations in power supplies or audio and conversion stages. In addition, these devices can now accommodate a 24 bits/192 kHz DAC board relying on the player’s internal converter. The USB input is asynchronous.

$2,499.95

ATOLL ELECTRONIQUE CD100 SIGNATURE

The Signature Series CD players have benefited from many innovations in power supplies or audio and conversion stages. In addition, these devices can now accommodate a 24 bits/192 kHz DAC board relying on the player’s internal converter. The USB input is asynchronous.

Features:

  • 4 mm brushed aluminium front.
  • 8 regulated power supplies including a specific low-noise one for the converter.
  • Separate 10 VA transformers for the audio stages.
  • Current-voltage conversion stages designed by Atoll using bipolar transistors.
  • BURR-BROWN PCM1796 converter:
    – 24 bits/192 kHz.
    – Dynamic: 124 dB.
    – Signal/Noise ratio: 124 dB.
  • Original TEAC central CD mechanics.
  • Pure audio CD player compatible: CD, CD-R, CD-RW, MP3, WMA-AAC.
  • Linear power supply for digital stages with a specific 30 VA transformer.
  • Separate linear power supply for the audio stages.
  • Double-sided circuit boards with nickel/gold finish.
  • Low consumption OLED display.
  • Reading the CD-Text.
  • Class A biased discrete component differential audio output stages.
  • Optional 24 bits/192kHz digital board for all signature series CD players.
  • ATOLL global remote control.

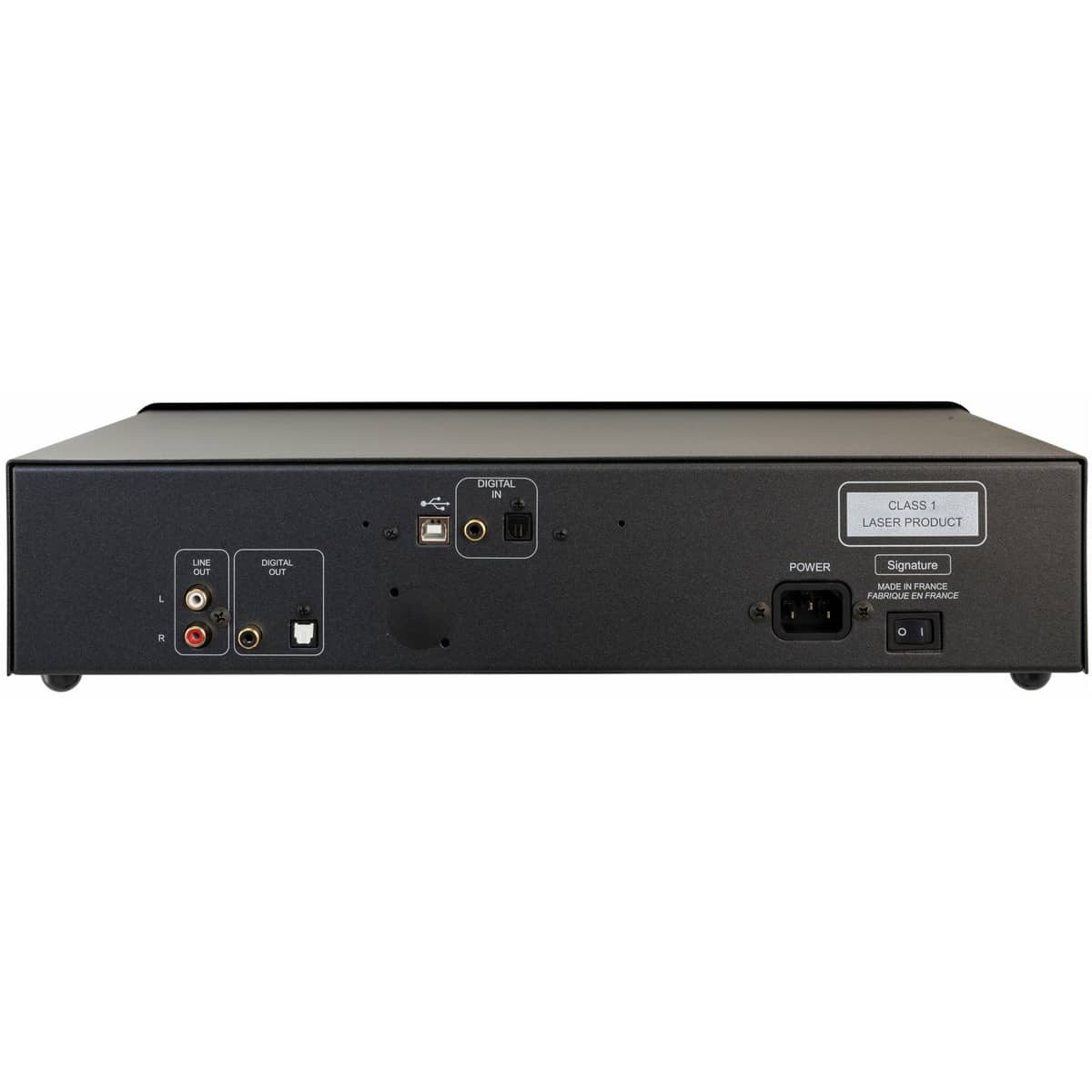

CONNECTIVITY:

Outputs

  • 1 Line output (right and left).
  • 1 Coaxial digital output.
  • 1 Optical digital output.
WeightN/A
DimensionsN/A
Brands

Color

Black, Silver

Specifications

  • Supplies 30+10 VA
  • Total of capacitors: 13 032 µF
  • Output stage: symetrical / discrete stages
  • Output level: 2,5 Vrms
  • Output Impedance: 5,6 Ώ
  • Converter (N/A) : 24 Bit / 192kHz
  • Digital outputs: Coaxial & optical
  • Signal/noise ratio: 124 dB
  • Distortion at 1kHz : (< 0,002 %)
  • Bandwidth: (5–20 kHz)
  • Rising time: 2 µs
  • Dimensions: 440x290x90mm
  • Weight : 5 kg
