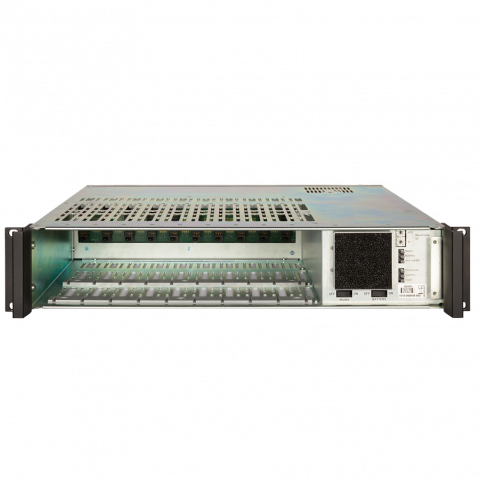

ASL V2000

ASL’s V2000 is a compact and robust solution for Voice Alarm Amplification. This mainframe is specifically engineered to accommodate ASL’s modular D-series amplifier and LSZDC interface cards. Controlled by ASL’s VIPEDIA Audio Router, this 2U 19” rack-mount frame supports up to 2000W distributed across a maximum of 10 individual amplifier cards. Connectivity to the Audio router is facilitated through both ethernet for control/monitoring and copper hard-wired cables for line-level audio, which provides integrated fail-safe redundancy in case of frame processor failure.

For larger installations or those requiring extended availability, multiple V2000 units can be strategically deployed across separate PAVA nodes, offering interleaved circuits. Up to sixty-three V2000 frames can be hosted on a single VIPEDIA audio router, thereby ensuring considerable scalability and efficiency in system design.

$11,500

Wishlist

Compare

ASL V2000

Voice Alarm applications

In adherence to industry standards, the V2000 solution is EN 54-16 certified as part of the ASL PAVA system, incorporating an integrated battery charger compliant with EN 54-4 standards. This charger, designed for use with multiple 12 V VRLA batteries to provide 24 V DC, can recharge up to 80 Ah in full compliance with the EN 54-4 re-charge requirements, thereby eliminating the need for an external charger which leads to a streamlined installation and minimises the cabinet space requirements. Moreover, the V2000 offers comprehensive monitoring functionality covering processors, power supplies, amplifiers, and circuits. Detected faults are promptly reported back to the host Audio Router and categorized in compliance with the requirements of the EN 54-16 standard.Modular Design

The ASL V2000 mainframe supports ASL’s D-Series amplifier, which are available in two variants: D500 (max power rating 500W) and D150 (max power rating 150W). These lightweight transformerless modules are hot-swappable and software configurable, allowing for flexible allocation of amplifier power within the mainframe’s 2000W total capability, optimizing both space and power efficiency. The amplifier inputs and outputs, are connected via the LSZDC interface modules, with options for single or isolatable A/B dual circuit output feeds. Additionally, the LSZDC modules may be configured to monitor the following system parameters: Input signal (0dBu nom), amplifier functionality, loudspeaker line integrity (using DC, Impedance or Loop-Back surveillance techniques). Standby amplification can either be configured as self-contained within each individual V200 mainframe or housed in a separate V2000 mainframe, in which case the optional V2000-STBY module will be required.Power Supply

A multi-functional power supply, compatible with both 230V and 110V AC operation, combined with a secondary 24V DC battery-backed supply, ensures adaptability to various scenarios.

Ease of diagnostics

The ASL V2000 incorporates LEDs to indicate the mainframe and amplifier status, facilitating quick visual assessment of the amplifier status and the identification of any functional
issues. Additionally, unit information and operational status can be accessed via IP-based tools, thereby streamlining troubleshooting and maintenance processes.

PAVA 2000W Power Amplifier Mainframe (0 amps Pre Installed)

HIGH POWER DENSITY UP TO 2000 W / 100V
10 MODULAR AMPLIFIER SLOTS
2U / 19” COMPACT HOUSING
AN INTEGRATED PART OF THE ASL EN 54-16 CERTIFIED PAVA SYSTEM
INDIVIDUALLY HOT-SWAPPABLE AMPLIFIER CARDS
COMBINES AMPLIFICATION AND EN 54-4 CHARGER
VERY HIGH EFFICIENCY & LOW STANDBY CURRENT
STANDBY AMPLIFIER OPTIONS

SKU: asl-v2000 Categories: Integrated Amplifiers & Receivers, Receivers, Amps & Preamps

Weight	20000 g
Dimensions	450 × 450 × 100 mm
Brands	ASL

Supply Voltage
AC Supply …………………………………………………………………………….
……………………………………………………………… 230 V (+25% / -16%)
……………………………………………………………… 110 V (+10% / -15%)
AC Supply Frequency …………………………………………………50-60 Hz
Inrush Current (max)…………………………………………………………21 A
Maximum AC VA Rating (50% Full Power Sinewave) ………………….
……………………………………………………. 2200 VA (230 V AC Supply)
……………………………………………………… 900 VA (110 V AC Supply)
Maximum AC VA Rating (100% Full Power Sinewave) ………………..
……………………………………………………. 3800 VA (230 V AC Supply)
……………………………………………………. 1650 VA (110 V AC Supply)
DC Supply ……………… 21-28 V Nominal 24 V lead acid battery pack
Quiescent DC Current No Amplifiers……………….. 80 mA @ 24 V DC
Maximum DC Current per D500 Amplifier …………… 28 A @ 24 V DC
Auxiliary DC Supply Output
DC Voltage ……………… 20 V to 29 V depending on AC or DC supply
Rated Continuous Maximum Output Current (Imax. a) …………….2 A
Minimum Loading (Imin) ……………………………………………………..0 A
DC Supply Input/Output (Charger)
Input/Output Voltage ……………….. 21 to 28 V (Nominal 24 V Battery)
Maximum Battery Charging Current …………………………………….. 3A
Maximum value of internal battery resistance for which
unit functionality can be maintained (Ri max) ……………………. 60 mΩ
Charging Time1 ………………….. <24 hours to charge to 80% capacity
………………………………………. <72 hours to charge to 100% capacity
Amplification
Amplifier Cards (D-Series) ………………………………… Sold Separately
Interface Cards (LSZDC) ……………………………………Sold separately
Maximum Output Power …………………….. 2000W (230 V AC Supply)
………………………………………………………. 1000W (110 V AC Supply)
Number of Amplifier Card Slots…………………………………………….. 10
Number of Standby Card Slots ……………………………. 2 out of the 10
Amplifier Outputs …………………………….. 100 / 70 / 50 V RMS output
Mechanical
Dimensions (H x W x D) …………………………………………………………..
…………………………….. 86mm x 436mm x 425mm Excludes Handles
Mounting ………………………………………… 19-inch rack mounting (2U)
Finish ……………………………………………. Low Smoke / Zero Halogen
Colour ………………………………………………………………. Silver & Black
Weight (Frame only) ……………………………………………………… 7.7 kg
Weight (Frame fitted with 10 Amplifiers / Interfaces) ……………. 15 kg
Environmental
Operating ………………………………………………………… -10°C to +55°C
Storage …………………………………………………………… -20°C to +55°C
Humidity Range ………………………………. 0% to 93% non-condensing
Ingress Protection …………………………………………………………… IP20
Software, Tools and Management
Configuration Tools ……………………………………………. IP based SCT
Software Compatibility
V2000 ……………………………………………… Software Bundle ≥V1 LTS
V2000-r2 ………………………………………….. Software Bundle ≥V4 LTS
Approvals & Standard Compliance
Fire ……………………………………………………….. EN 54-16 & EN 54-4
Rail …………………………………………………………………… EN 50121-4
Electromagnetic Compatibility Directive (Emissions & Immunity) ….
……………………………………………….. EN 61000 series / EN50130-4
Low Voltage Directive (Safety) ………………… EN / UL / IEC 62368-1
Conformity …………………………………………………. CE / CPR / UKCA
Environmental ……………………………………………….. RoHS / REACH
V2000 ………………………………………………………………………………… PAVA Amplifier Mainframe up to 2000W /1000W /10 Channel (0 amplifiers)
V2000-r2 …………………………………………………………………………….. PAVA Amplifier Mainframe up to 2000W /1000W /10 Channel (0 amplifiers)
D150 ……………………………………………………………………………………………………………………….. PAVA Amplifier Card for the V2000 up to 150W
D500 ……………………………………………………………………………………………………………………….. PAVA Amplifier Card for the V2000 up to 500W
LSZDC…………………………………………………………………………………………………………………………. PAVA Amplifier Interface Card for the V2000
V2000-STBY ………………………………………………………………………………………………………..PAVA Standby Linking Interface Card for the V2000
RAK-FAN01 ………………………………………………………………………………………………………………………………………………… Fan tray for the V2000
RAK-DUCT01 …………………………………………………………………………………………………………………………………. Ducting for the V2000 Fan Tray
V2000-BDIST ……………………………………………………………………………………………………………………………………. Battery Breaker for the V2000
V2000-POK ………………………………………………………………………………………………………………………………………. V2000 Power Output Card Kit
